High speeds
at high speed.
Altowav's wireless solutions get you fiber speeds
at 10x lower costs - and 10x faster deployment.
Altowav's 60GHz solutions provide unparalleled performance, all with flexible and fast deployment enabled by our proprietary software stack. Altowav gives you up to multi-gigabit connectivity where you need it, when you need it.
Advanced Beamforming
Superior beamforming using hundreds of antenna elements delivers easy setup, exceptional link resiliency, and multi-gigabit throughput at longer ranges.
TDMA
AltoPlex radios allocate a time slot for each client device allowing for even denser networks and channel reuse without interference.
Compact & Carrier Grade
Sleek, unobtrusive form factors that are easy to install, nearly disappear and are built to last in harsh environments —perfect for streetlights, homes, or more.
Superior Sector Performance
Packet acceleration that can handle 2.4 million 64 byte packets per second on each sector, allowing maximum capacity even with small packets.
Ring Redundancy
Standard support for Rapid Spanning Tree Protocol (RSTP) for automatic re-routing in the event of a failure and flexibility to set up remotes to switch to alternate hubs if needed.
Open API
RESTful API so you can use whatever nextgen network management tools that work best for your needs.
Built To Last
Don't rely on disposable hardware. Stand the test of time with our durable, carrier-grade radios with industry-leading ingress protection.
Lowest TCO
The best price-performance in the industry and network automation for much lower install and maintenance costs. Finally a 60GHz solution that can scale!

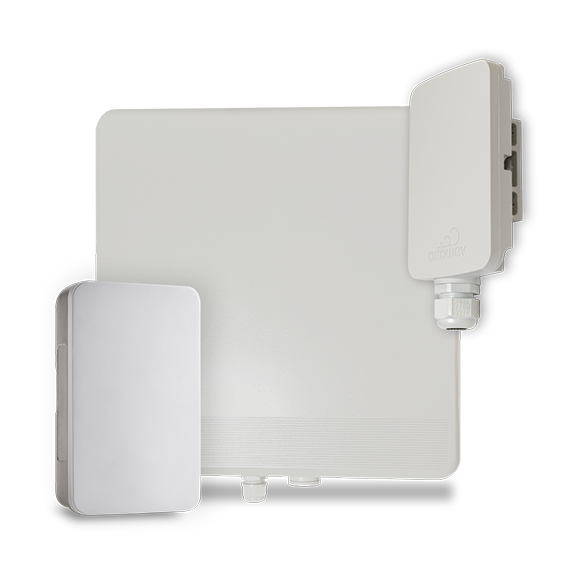

AltoPlex High-Capacity and High-Density 60GHz Radios
AltoPlex offers flexible hardware options with intergrated pole/wall mounts.

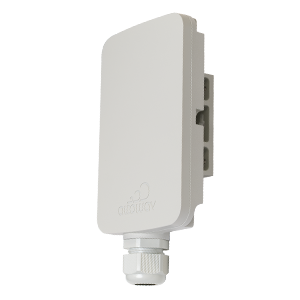

AltoPlex Distribution and Client Radios
D621 |
C420 |
C410 |
|
|---|---|---|---|
| High-Capacity Distribution/Client | Extended Range Client | Standard Client | |
| Capacity/Throughput | 3.8Gbps Aggregate | 2Gbps Aggregate | 2Gbps Aggregate |
| Range | Up to 1312ft (400m) | Up to 1312ft (400m) | Up to 820ft (250m) |
| Latency | Sub 1ms | Sub 1ms | Sub 1ms |
| Ports | 1 x 2.5GbE RJ45 | 1 x 1GbE RJ45 | 1 x 1GbE RJ45 |
| Weather Sealing | IP67 | IP67 | IP67 |
| Dimensions | 5.9 x 3.8 x 1.4 inches, 14oz 150 x 95 x 35mm, 400g | 5.9 x 3.8 x 1.4 inches, 14oz 150 x 95 x 35mm, 400g | 5.9 x 3.8 x 1.4 inches, 14oz 150 x 95 x 35mm, 400g |
| Datasheet | Download | Download | Download |

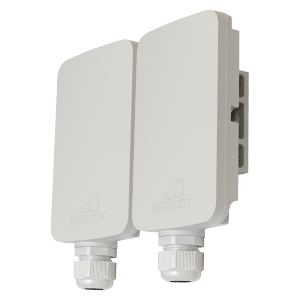

AltoPlex Bridge Radio Kits

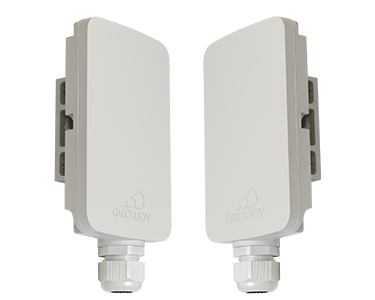

P621 Bridge Kit |
P421 Bridge Kit |
|
|---|---|---|
| Multi-Gigabit Network Bridge Kit | Gigabit Network Bridge Kit | |
| Capacity/Throughput | 3.8Gbps Aggregate | 2Gbps Aggregate |
| Range | Up to 1312ft (400m) | Up to 1312ft (400m) |
| Latency | Sub 1ms | Sub 1ms |
| Ports | 1 x 2.5GbE RJ45 | 1 x 1GbE RJ45 |
| Weather Sealing | IP67 | IP67 |
| Dimensions | 5.9 x 3.8 x 1.4 inches, 14oz 150 x 95 x 35mm, 400g | 5.9 x 3.8 x 1.4 inches, 14oz 150 x 95 x 35mm, 400g |
| Included Accessories | 2 x Indoor 802.3at (30W) PoE injectors | 2 x Indoor 802.3af (15W) PoE injectors |
| Datasheet | Download | Download |
AltoReach Long-Range 60GHz Radios
AltoReach offers best-in-class range in a compact radio.
AltoReach Access Point and Remote Station Radios

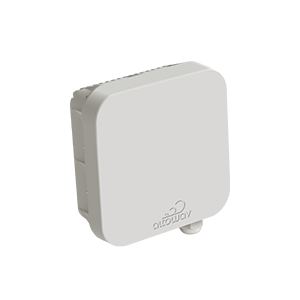

AP90 |

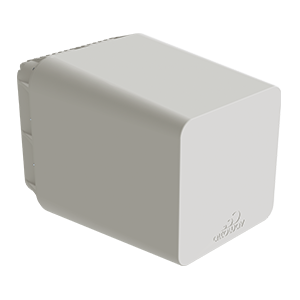

S150 |
|
|---|---|---|
| Access Point/Remote Station | Long-Range Remote Station | |
| Capacity/Throughput | 2Gbps+ Aggregate | 2Gbps+ Aggregate |
| Range | Up to 1.1 miles (1800m) PtMP with S150 Up to 1640ft (500m) PtMP with AP90 | Up to 3 miles (5km) PtP Up to 1.1 miles (1800m) PtMP with AP90 |
| Latency | Sub 1ms | Sub 1ms |
| Ports | 1 x 2.5GbE RJ45 | 1 x 2.5GbE RJ45 |
| Weather Sealing | IP67 | IP67 |
| Dimensions | 5.1 x 4.7 x 2.2 inches, 15oz 130 x 120 x 35mm, 425g | 5.1 x 4.7 x 7 inches, 16.8oz 130 x 120 x 178mm, 475g |
| Datasheet | Download | Download |

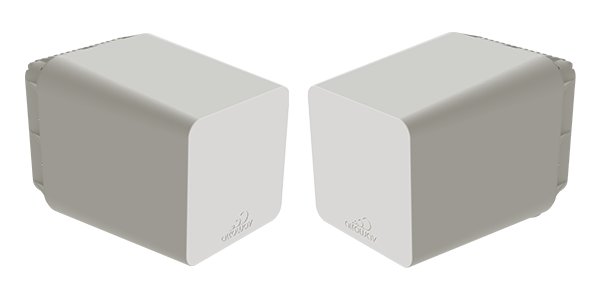

AltoReach Bridge Radio Kit
S150 Bridge Kit |
|
|---|---|
| Long-Range Network Bridge Kit | |
| Capacity/Throughput | 2Gbps+ Aggregate |
| Range | Up to 3 miles (5km) |
| Latency | Sub 1ms |
| Ports | 1 x 2.5GbE RJ45 |
| Weather Sealing | IP67 |
| Dimensions | 5.1 x 4.7 x 7 inches, 16.8oz 130 x 120 x 178mm, 475g |
| Included Accessories | 2 x Indoor 802.3at (30W) PoE injectors 2 x Precision Mounting Kits |
| Datasheet | Download |
Altowav K60 60GHz Radios
Flexible range of 11ad-based 60 GHz radios to support all of your indoor and outdoor gigabit use cases.

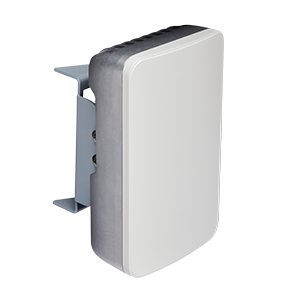

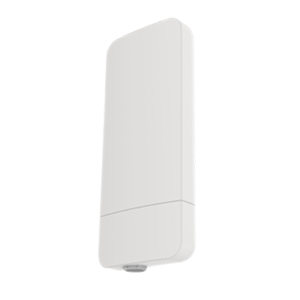

K60 Distribution and Client Radios
K60 |
K60c |
|
|---|---|---|
| Distribution or 2-port Client | Standard client | |
| Capacity/Throughput | 1.8Gbps Aggregate | 1.8Gbps Aggregate |
| Full Capacity Range | Up to 1,312ft (400m) | Up to 919ft (280m) |
| Latency | Sub 1ms | Sub 1ms |
| Ports | 2 x 1GbE | 1 x 1GbE |
| Weather Sealing | IP67 | IP65 |
| Dimensions | 6.2 x 3.9 x 1.9 inches, 14oz 157 x 99 x 48mm, 400g | 7.3 x 3.2 x 1.2 inches, 9oz 185 x 80 x 30mm, 255g |
| Datasheet | Download | Download |

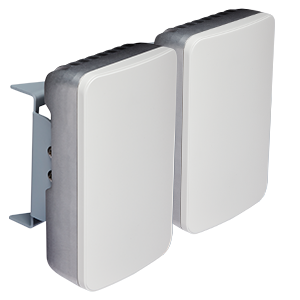

K60 Bridge Radio Kit

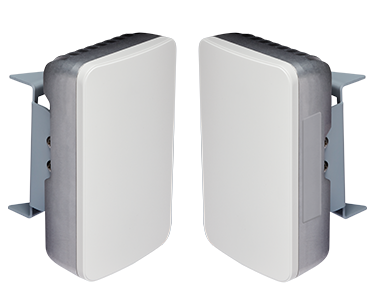

K60 Bridge Kit |
|
|---|---|
| Gigabit Network Bridge Kit | |
| Capacity/Throughput | 1.8Gbps Aggregate |
| Full Capacity Range | Up to 1,312ft (400m) |
| Latency | Sub 1ms |
| Ports | 2 x 1GbE |
| Weather Sealing | IP67 |
| Dimensions | 6.2 x 3.9 x 1.9 inches, 14oz 157 x 99 x 48mm, 400g |
| Included Accessories | 2 x Pole Mounts, 2 x Indoor 802.3bt (60W) PoE injector, 2 x 3.3ft (1m), HARTING PushPull V4 RJ45 to RJ45 outdoor cables |
| Datasheet | Download |
Altowav's long-range point-to-point solutions make it possible to make connections outside the range of typical radios while providing high speed gigabit plus capacity.

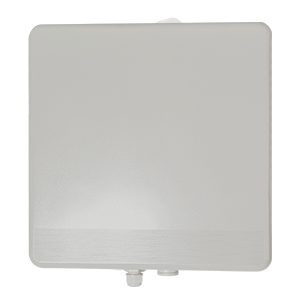

AltoLink 5GHz Long Range Radios
11ax-based radios for long-range point-to-point use cases.
5P624 |
|
|---|---|
| Point-to-Point Radio | |
| Capacity/Throughput | Up to 1.2Gbps Aggregate |
| Full Capacity Range | Up to 1.2 miles (2km) |
| Latency | Sub 2.5ms average |
| Ports | 1 x 2.5GbE and 1 x 1GbE SFP |
| Weather Sealing | IP67 |
| Dimensions | 14.7 x 14.6 x 3.9 inches, 5.7lbs 373 x 370 x 98mm, 2.6 kg |
| Datasheet | Download |
Altowav offers a line of outdoor PoE switches, PoE injectors, mounting accessories, and specialty cables for our radio units.
Outdoor PoE Switches
PoE outdoor switches for radios and additional PoE devices.

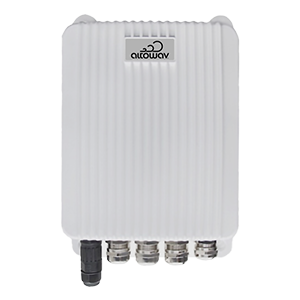

AX-PSW-OD-3AT-4C1 |

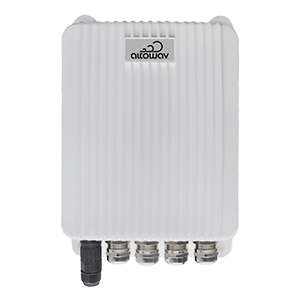

AX-PSW-OD-4AT-4C25 |
|
|---|---|---|
| Outdoor PoE Switch | Outdoor PoE Switch | |
| Port Data | Up to 1Gbps | Up to 2.5Gbps |
| Ports/PoE Ports | 4/3 | 4/4 |
| PoE Output | 55VDC 1.1A Per Port,Total 160W (max.) | 55VDC 1.1A Per Port,Total 160W (max.) |
| PoE Output Types | IEEE 802.3af, 802.3at, PoE++ (60W) | IEEE 802.3af, 802.3at, PoE++ (60W) |
| Weather Sealing | IP67 | IP67 |
| Dimensions | 6.9 x 10.6 x 2.6 inches, 4lbs 176 x 269 x 65mm, 1.8kg | 6.9 x 10.6 x 2.6 inches, 4lbs 176 x 269 x 65mm, 1.8kg |
| Datasheet | Download | Download |

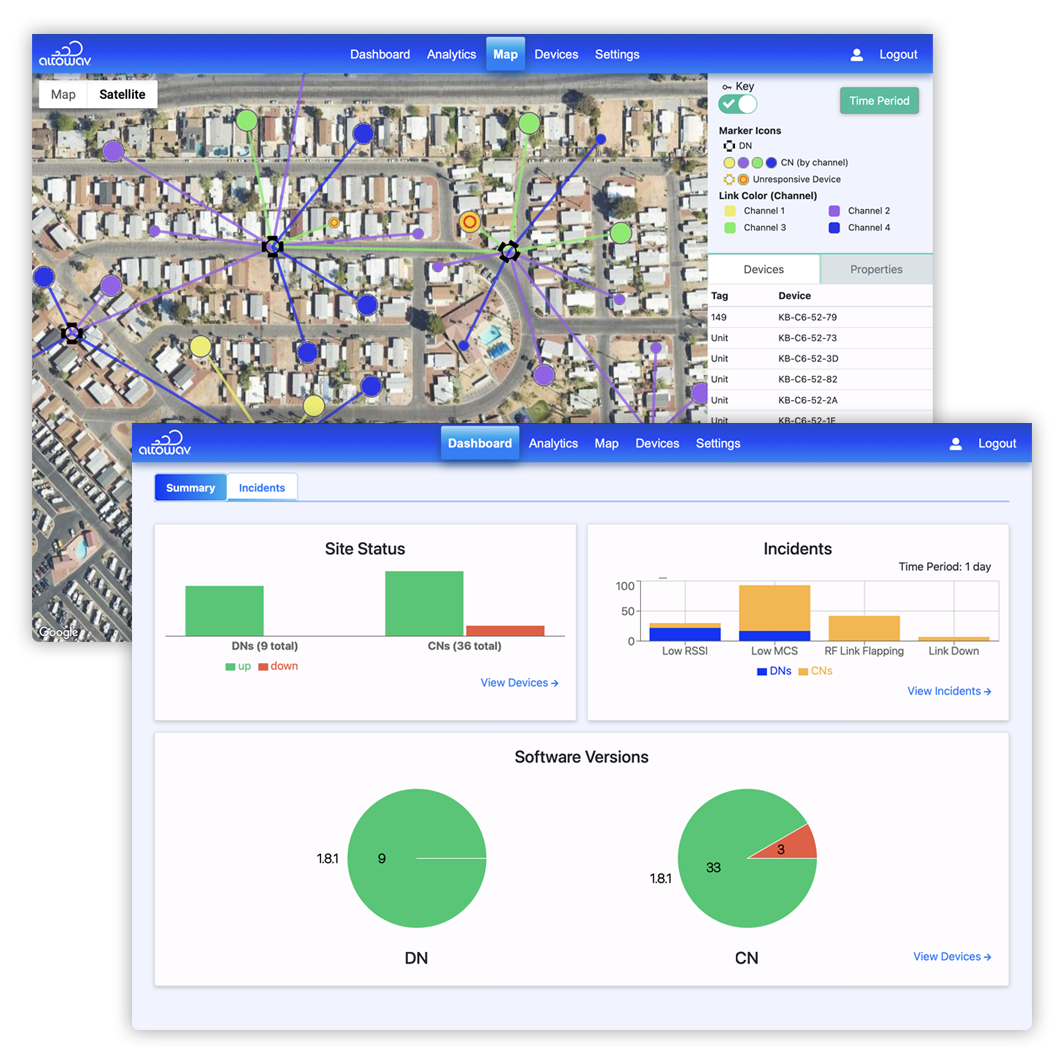

AltoCommand Wireless Management
AltoCommand enables easy deployment and efficient management of dense 60GHz networks. Key features include:
- Intelligent network optimization
- Performance Analytics
- Map View
- Network Status
- Device Configuration
- Administration
- Managed Software Upgrades
